Board Level Heatsinks, Pune, India
Aluminium Extruded Heatsinks

Aluminium Extruded Heatsinks
Aluminium Extruded Heatsinks
Aluminium Extruded Heatsinks

Aluminium Extruded Heatsinks

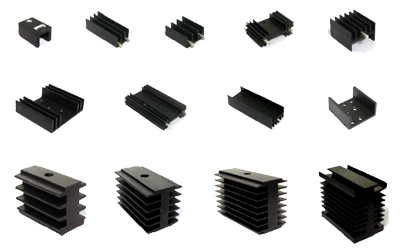

Standard Heatsinks


Standard Heatsinks

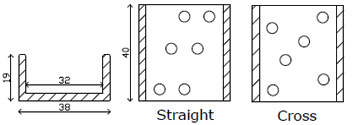

Part no.
Pakage
Length
Mounting
1D01
TO-03
40
Straight
1D02
TO-03
40
Cross




Part no.
Pakage
''L''
Type
3D01
TO-03
62
1 TR
3D02
TO-03
62
2 TR
3D03
TO-03
125
4 TR
3D04
TO-03
190
6 TR
3D05
TO-03
250
8 TR
3D06
TO-03
305
10 TR



Part no.
Pakage
Length
Hole

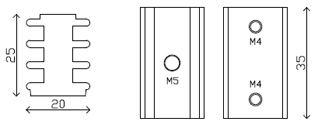

15K1
SCR &Diode
6 AMPS
35
M4- 2 nos at Bottom
M5- 1 nos at Top



Part no.
Pakage
"L"
Hole

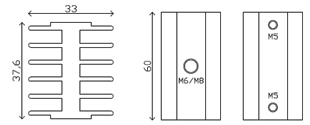

16K2
SCR & Diode
12 AMPS
60
M5- 2 nos at Bottom
M6/M8- 1 nos at Top



Part no.
Pakage
Length
Hole

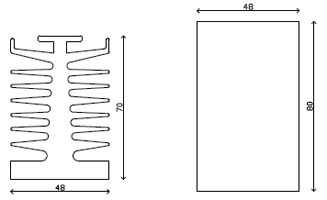

17K3
SCR &Diode
25 AMPS
80
M5- 2 nos at Bottom
M6/M8- 1 nos at Top



Part no.
Pakage
Length
Hole
18K4
70 Amp Diode
SCR,SSR.
80
As Required


Part no.
Pakage
''L''
Pin Dia
22D01
TO-202 / TO-220
25.5
2.6
22D02
TO-202 / TO-220
38
2.6
22D03
TO-202 / TO-220
51
2.6
22D04
TO-202 / TO-220
64
2.6


Part no.
Pakage
''L''
Pin Dia
23D01
TO-202 / TO-220
25.5
2.6
23D02
TO-202 / TO-220
38
2.6


Part no.
Pakage
''L''
Pin Dia
24D01
TO-220
25.5
2.6
24D02
TO-220
38
2.6
24D03
TO-220
51
2.6

Part no.
Pakage
''L''
Pin Dia
24D04
TO-218/ TO-247
25.5
2.6
24D05
TO-218/ TO-247
38
2.6
24D06
TO-218/ TO-247
51
2.6
24D07
TO-218/ TO-247
64
2.6


Part no.
Pakage
''L''
Pin Dia
24D08
TO-220/ TO-202
25.5
2.6
24D09
TO-220/ TO-202
38
2.6
24D10
TO-220/ TO-202
51
2.6
24D11
TO-220/ TO-202
64
2.6



Part no
Pakage
''L''
Pin Dia
110D01
TO-220
25.5
2.6
110D02
TO-220
38
2.6



Part no.
Pakage
''L''
Pin Dia
111D01
TO-220
25.5
2
111D02
TO-220
38
2



Part no.
Pakage
''L''
Pin Dia
130D01
TO-220
25.5
2.6
130D02
TO-220
38
2.6



Part no.
Pakage
''L''
Pin Dia
152D01
TO-218 ,TO-220, TO-247
25.5
2.6
152D02
TO-218 ,TO-220, TO-247
38
2.6
152D03
TO-218 ,TO-220, TO-247
50
2.6
152D04
TO-218 ,TO-220, TO-247
63
2.6



Part no.
Pakage
''L''
Pin Dia
153D01
TO-218 ,TO-220, TO-247
25.5
2.6
153D02
TO-218 ,TO-220, TO-247
38
2.6
153D03
TO-218 ,TO-220, TO-247
51
2.6
153D04
TO-218 ,TO-220, TO-247
64
2.6



Part no.
Pakage
''L''
154D01
TO-220
20
154D02
TO-220
25



Part no.
Pakage
''L''
Type

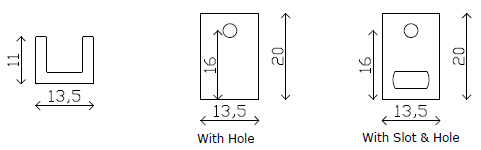

155D01
SOT-32
20
With Hole
155D02
SOT-32
20
With Slot & Hole
