Card Frames (Sub Racks)

We are Manufacturer, Supplier, Exporter of Electronic Enclosures, Enclosures for Electronic Instruments, Enclosures for Heat Sinks. Our setup is situated in Pune, Maharashtra, India.

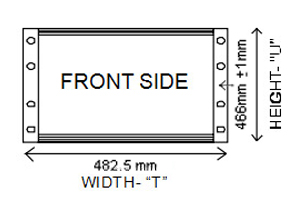

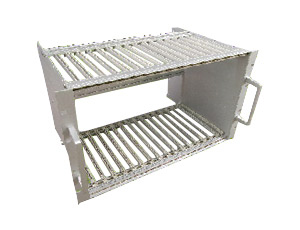

Card Frame

Size


  • Height- 3U,4U,6U (1U=44.45 mm) Width-42T,63T,81T,84T (1T=5.08 mm)
  • Depth-200 , 260 , 320 mm

Material

  • Side Panel-2.5 mm Aluminum Profiles-Aluminum Extruded Section

Finish-

  • Natural Anodised Alodine/Yellow Chromate Powder Coating

Dimensions

  • Natural Anodised Alodine/Yellow Chromate Powder Coating
Height Overall Usable
2U 88 68
3U 132.6 112.4
4U 177 157
5U 221.6 201.4
6U 266 246

Height Overall Usable
2U 88 68
3U 132.6 112.4
4U 177 157
5U 221.6 201.4
6U 266 246

Width Overall Usable
42T 88 68
63T 132.6 112.4
81T 177 157
6U 266 246


Features -


  • Side Panels provided with holes at the pitch of 15 mm ,It allows flexible design adjustments.
  • Easy to Assemble.
  • Top & Bottom cover - Plain or Ventilated
  • Support Profiles for mounting in 19” Racks.
  • Standard Package
    Side Panel- 2
    Front Profile-2
    Rear Profile-2
    Support Profile-2
    Hardware Set- 1

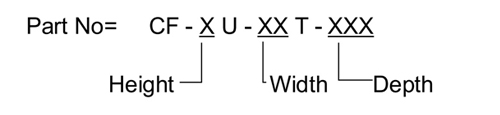

  • Ordering Information
    Ordering Information

Accessories-


  • Card Guide- Pitch 148 & 208 screw on Material- Polycarbonate , Norell
  • Metal Card Guide-Pitch as Per requirement Finish-Natural anodizing , Nickel Plating
  • Threaded Strips- M2.5 for Cardguide Mounting M3 for Front & Rear Plate Mounting.
  • Front & Rear Panels
  • Plug in Modules
  • Handles
  • Top & Bottom Cover-Plain / Ventilated,
  • Facia Plates.
