We are Manufacturer, Supplier, Exporter of Standard Heatsinks, Heatsinks, Aluminum Heatsinks, Heat Sinks Extrusion Profiles, Standard Heat Sinks. Our setup is situated in Pune, Maharashtra, India.

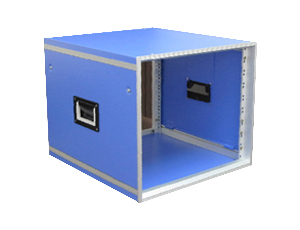

These Cabinets are designed for table top use. It accepts Standard 19 equipments.

19 inch Cabinets

Standard Package


  • Side Panels 2
  • Top Cover (plain) 1
  • Bottom Cover (Plain) 1
  • Width Profile 4
  • Height Profile 4
  • Depth Profile 4
  • Hardware set 1
  • Feet set 1

Accessories(optional)


  • Carrying Handles
  • Castors
  • Front , Rear Panels
  • Panel Mounting Hardware
  • Chassis plate
  • Support Angle
  • Top/Bottom Cover Ventilation

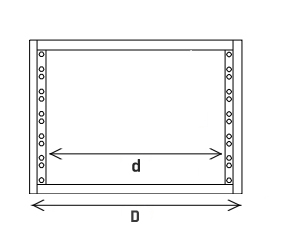

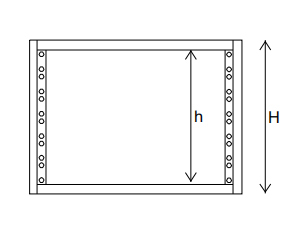

Entry Dimensions (mm)
Entry Dimensions (mm)

Height-h
Depth-d
3U
133
372.5
472.5
6U
267
372.5
472.5
9U
400.5
372.5
472.5
12U
533.5
372.5
472.5
Height-H Depth-D
176 450
550
310 450
550
443.5 450
550
576.5 450
550

1U=44.45mm



Finish


  • Aluminum Profiles-Natural Anodised
  • Top,Bottom,Side Cover-Powder Coated
Finish
Finish

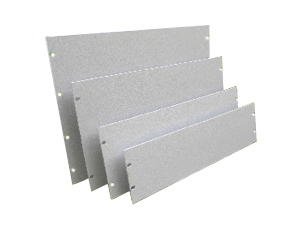

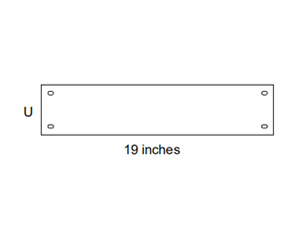

Blank Panels-


  • Mtrl-Aluminium Sheet 3mm
  • Finish- Natural Anodise Powder Coating
  • Size-1U,2U,3U,4U,5U,6U,9U,12U
    ( 1U=44.45 mm)
  • Width- 19 inches.
Blank Panels
Blank Panels
