Perforated Type Cable Trays

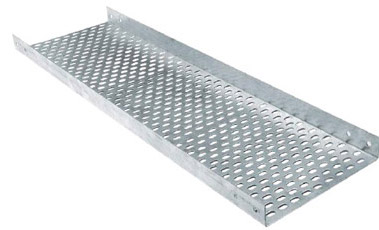

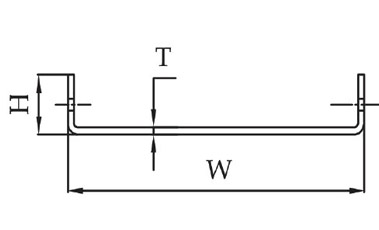

Perforated Straight Cable Trays

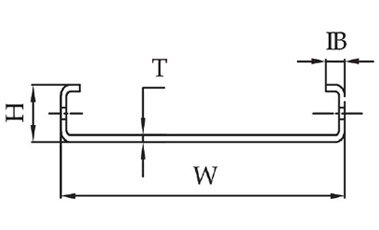

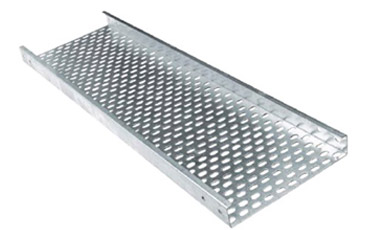

Perforated Inward Bend Cable Trays

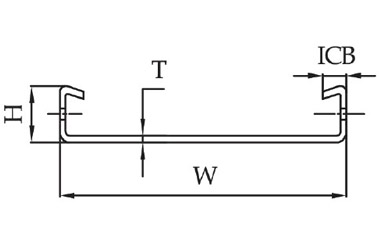

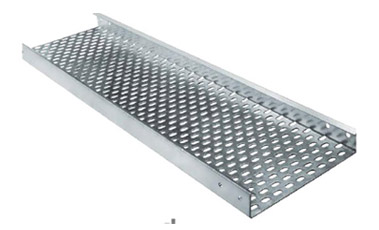

Perforated with Inward Inclined Bend Cable Trays

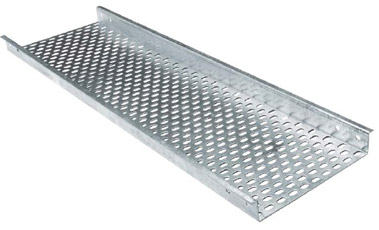

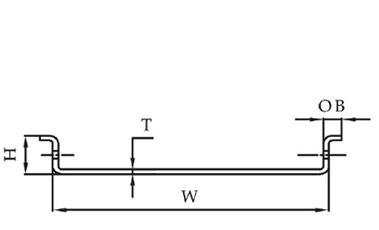

Perforated Outward Bend Cable Trays

STRENGTH	Light Duty, Medium Duty & Heavy Duty
WIDTH (W)	50mm to 1200 mm
HEIGHT (H)	25mm to 100 mm
THICKNESS (T)	1.2 mm, 1.6 mm, 2mm, 2.5 mm & 3 mm
INWARD BEND (IB)	10mm to 25 mm
INCLINED BEND (ICB)	10 mm to 25mm
OUTER BEND (OB)	10 mm to 25mm
LENGTH (L)	2500mm / 3000 mm & 2444 mm( for Aluminum)

Perforated Cable Tray Accessories

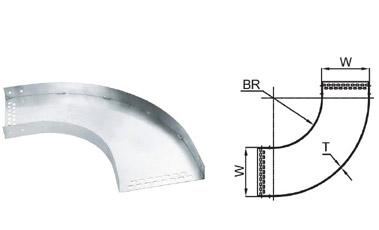

Horizontal Bend

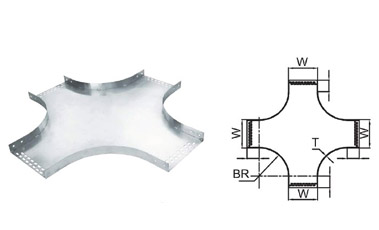

Cross Bend

Vertical Bend Inside

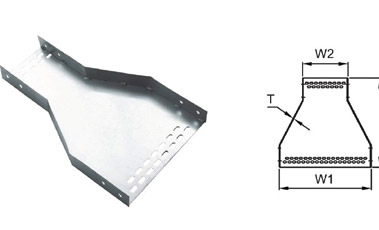

Center Reducer

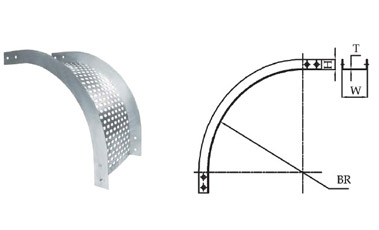

Vertical Bend outside

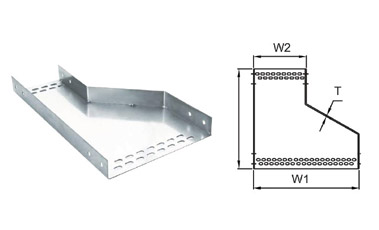

Left Hand Reducer

Types	Horizontal Bend, Inside Verticle Bend, Outside Vertical Bend, Tee Bend, Cross Bend, Reducer, Left Hand Reducer, Right Hand Reducer
BENDING RADIUS(BR)	150 mm to 900 mm
WIDTH(W)	As per cable Tray Width
HEIGHT (H)	As per cable Tray Height
THICKNESS(T)	As per cable Tray Thickness
FINISH	As per cable Tray Finishing

Ladder Type Cable Tray

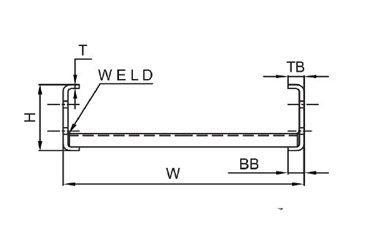

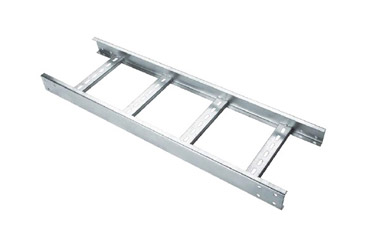

Ladder With Straight Run

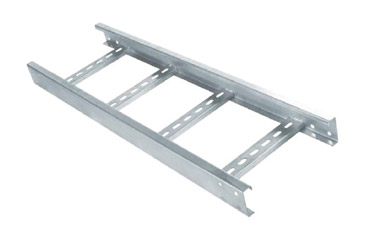

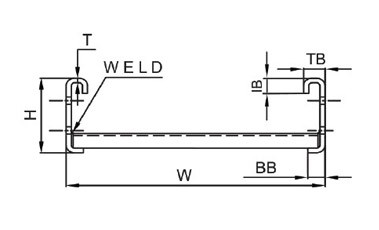

Ladder With Inward Bend

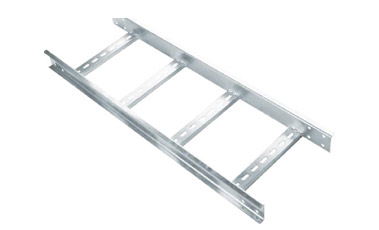

Ladder With Outward Bend

STRENGTH	Light Duty, Medium Duty, Heavy Duty
WIDTH	50 mm to 1200 mm
SIDE CHANNEL HEIGHT (H)	50 mm to 150 mm
RUN WIDTH	30 mm to 50 mm
RUN HEIGHT	10 mm to 20 mm
RUN C TO C	250 mm / 300 mm
THICKNESS (T)	1.6 mm, 2mm, 2.5mm, 3mm
INWARD BEND(IB)	10 mm to 25 mm
TOP BEND(TB)	10 mm to 25 mm
BOTTOM BEND(BB)	10 mm to 25 mm
LENGTH(L)	2500 mm / 3000 mm & 2444 mm (for Aluminium)

Ladder Cable Tray Accessories

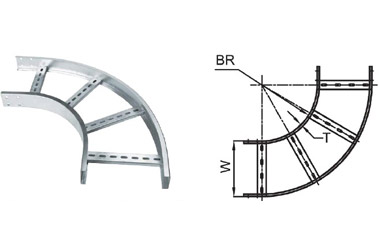

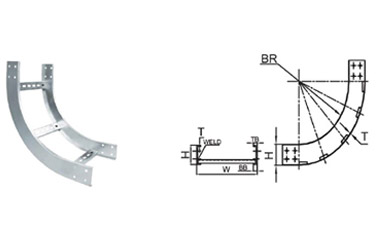

Horizontal Bend

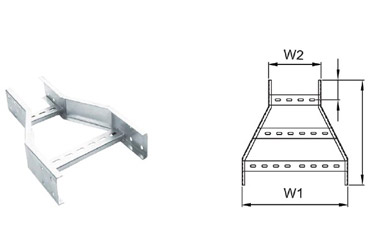

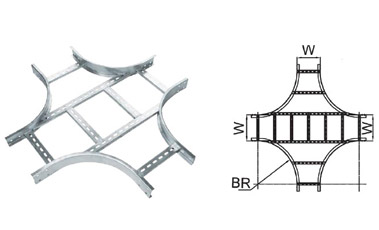

Cross

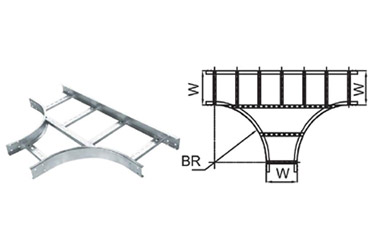

Tee

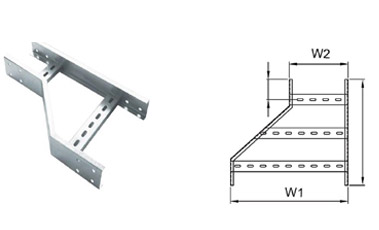

Right Hand Reducer

Types	Horizontal Bend, Inside Verticle Bend, Outside Vertical Bend, Tee Bend, Cross Bend, Reducer, Left Hand Reducer, Right Hand Reducer
BENDING RADIUS(BR)	150 mm to 900 mm
WIDTH(W)	As per cable Tray Width
HEIGHT (H)	As per cable Tray Height
THICKNESS(T)	As per cable Tray Thickness
FINISH	As per cable Tray Finishing

Cable Tray Covers

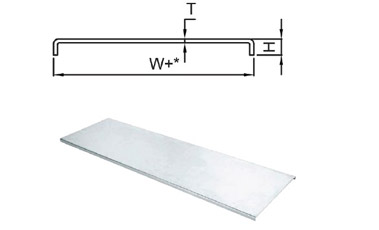

Flat Cover

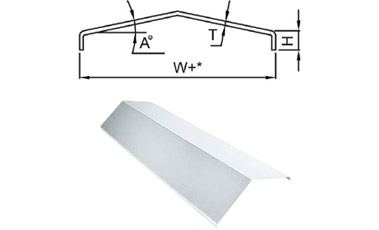

Sloppy Cover

Dome Cover

Coupler Plates With Hardware

CP 40*90

CP 25/40*210

CP 50*210

CP 65/70/100*210

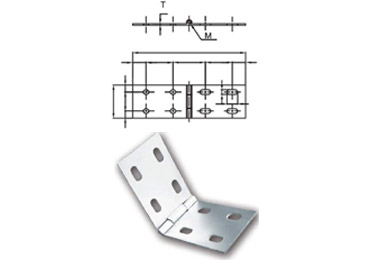

Horizontal Hinged (Adjusted)

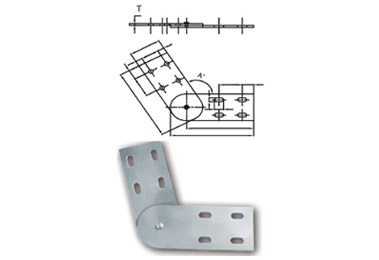

Vertical Hinged (Adjusted)

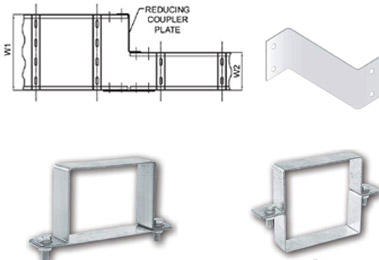

Type cover Clamp 1 Type cover Clamp 2
