Open Frame 2 Post Rack

We are Manufacturer, Supplier, Exporter of Standard Heatsinks, Heatsinks, Aluminum Heatsinks, Heat Sinks Extrusion Profiles, Standard Heat Sinks. Our setup is situated in Pune, Maharashtra, India.

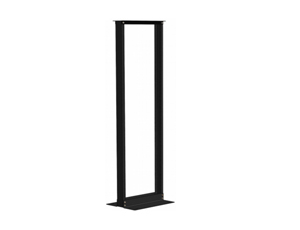

Open Frame 2 Post Rack

2 Post Open Frame Racks are suitable for High density applications Rigid Extruded aluminum profiles makes it sturdy and light weight Confirms to DIN-41494 Manufactured Under ISO 9001-2008 Manufacturing & Quality Management System


Technical Specification


  • Frame Construction
  • Vertical Profiles- Aluminum Extruded Profiles
  • Base Angles Mild Steel 4 mm Thick
  • Top Angles Mild Steel 3 mm Thick
  • Finish- Black Powder Coating
  • Height Options- 22U , 36U , 42U , 45U , 48U , 52U
  • Panel Mounting Holes- M6 Tapping on both side (Conductive)
  • Numbering- White Color Screen Printing on Vertical Profiles



Accessories(optional)


  • Cable Manager
  • Rack Mounting Hardware
  • Panel Mounting M6 Screws
  • Power Distribution Unit
  • Shelves

Standard Package


  • Vertical Profiles 2 nos
  • Base Angles 2 nos
  • Top Angles 2 nos
  • M 6 x 12 Screw 25 nos For Panel Mounting
  • M 12 X 25 Hex Bolt 12 nos - For Rack Assembly
